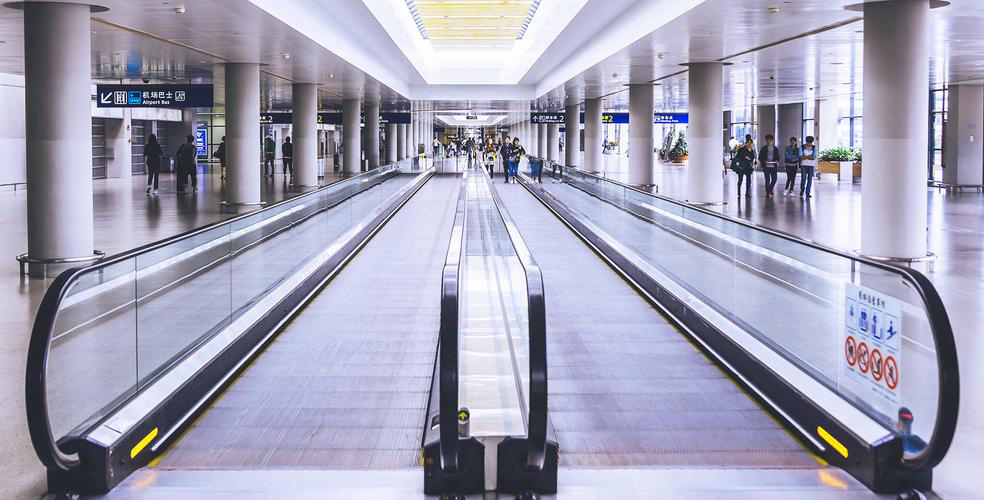

Automatic travelator for large traffic and long working time, goods, luggage and long-distance transport, with its excellent design to achieve transportation like moving on ground, fully meet the requirements of super market, shopping mall, airport, scenic area, high-end clubs etc.
Specifications:
Rise: <=6000mm
Inclination: 10︒/11︒/12︒
Rated speed: 0.5m/s
Step width：1000/800mm
Main configuration:
Controller: Micro control
Truss: Deflection 1/750(1/1000,1/1500)
Machine:Turbo-worm/ Helical gear
Chain: Roller inside
Step: St. steel /Aluminum alloy
Roller: Polyurethane
Main drive: Big friction wheel
Side panel: Overall welding
Track system: Profile rail
Handrail: C type
Handrail guide rail: St. steel/ Aluminum alloy
Balustrade: Toughened glass/ St. steel
Skirt panel/Decking: St. steel
Lubrication system: Electromagnetic pump
Handrail entry: Aluminum alloy
Floor plate: St. steel/Aluminum alloy
Comb: Aluminum alloy/Engineering plastics
CONTROL SYSTEM
- Adopts the comprehensive promotion of 32-bit microprocessor,
the control system is fully functional.
- A full range of security features to protect(safety integrity level sIL2).
More than double CPU design.
Self-study, speculation.
Independent power frequency switching function.
MACHINE
- Professional research and development of the machine team is committed to the design concept of excellent quality, to create unique mature system.
- Compact, high efficiency, strong power,realize the flagship process.
- Advanced manufacturing technology, high service life, brake system with brake open
inspection, imported brake lining and motor overheating protection, make safer, more reliability and longer service life, reliable operation.
- The built-in flywheel can effectively prevent contact, high protection class.
MAIN DRIVE
- High strength alloy material, precision manufacturing, good synchronization, high safety coefficient.
HANDRAL DRIVE
- Big friction drive, the super drive power of handrail ensure handrail bet and step synchronization operation.
TRUSS
- Stabe weking truss structure,truss strength through ANSYS finite element analysis, safer and more relable.
- Indoor truss through ant-crrosion spraying processing outdoor truss gavanzed processing.
- Pass EN1090 welding certification, welding reached wold leading leveL
CHAIN
- High strength step transmission chain, can greatly meet the requirements of use, the design life time reach 70000 hours.
