The custom heavy-duty commercial escalator is a high-load, long-lasting vertical transportation solution engineered for high-density and 24-hour continuous operation scenarios. Different from standard ordinary escalators, this heavy-duty model adopts upgraded thickened steel structure, reinforced transmission system and customized personalized configuration, which can be tailor-made according to on-site building size, lifting height, passenger flow and decoration style. It is widely used in super shopping malls, transportation hubs, large exhibition centers and busy commercial complexes, perfectly meeting the stringent durability, safety and high-frequency operation requirements of high-end commercial public projects.

Specification Item
Technical Specification
Inclination Angle
30° / 35° / Customized
Rated Operating Speed
0.5m/s (Commercial heavy-duty standard)
Standard Step Width
800mm / 1000mm / Custom Size
Custom Lifting Height
2.5m – 10m (Support personalized customization)
Maximum Passenger Capacity
9000 – 12000 Persons/Hour
Drive System
Heavy-Duty VVVF Variable Frequency Drive
Main Frame Material
Thickened Welded Carbon Steel Frame
Skirt Panel Material
Brushed / Mirror / Titanium Stainless Steel Custom
Running Noise
≤55dB Ultra-quiet Operation
Working Mode
24h Continuous Operation / Induction Standby
Power Supply
380V/50Hz Industrial Standard Power
Operation Grade
Heavy-Duty Commercial Grade

Product Description

- Heavy-Duty High-Load Performance: Upgraded reinforced mechanical structure, specially designed for long-term high-frequency operation, resisting fatigue loss caused by peak passenger flow, with longer service life and more stable operation than standard escalators.

- Full Customization Support: Free customization of lifting height, step width, inclination angle, appearance decoration and functional modules, perfectly adapting to irregular building shaft space and personalized commercial decoration styles.

- 24/7 Continuous Stable Operation: Optimized heavy-load drive motor and enhanced synchronous chain system, supporting all-day uninterrupted operation, zero jitter and zero deviation under full-load conditions.

- Intelligent VVVF Energy-Saving Technology: Automatic passenger flow sensing speed regulation, matching operating power with pedestrian volume, effectively reducing idle energy consumption, saving more than 40% of long-term operating electricity costs.

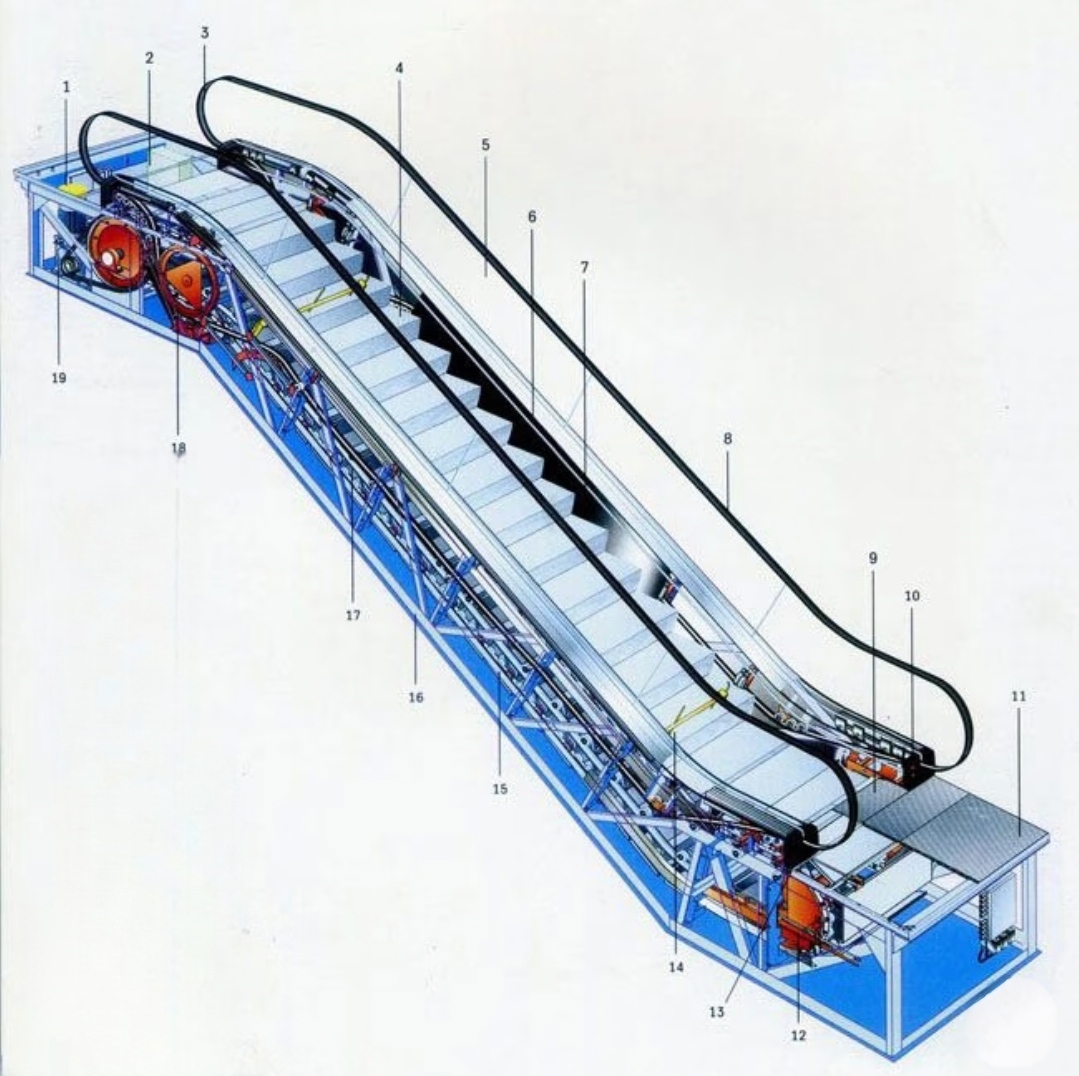

Heavy-Duty Structural Design

- Thickened Integral Welded Frame: Adopts upgraded thick carbon steel integral welding structure, with stronger bearing capacity and anti-deformation performance

- Reinforced Transmission System: Thickened synchronous drive chain, upgraded drive gearbox and high-torque motor, ensuring stable power output under long-term full-load operation.

- Dustproof & Sealed Core Structure: Fully enclosed mechanical and electrical structure prevents commercial floating dust and sundries from entering core parts, protecting key components and extending service life.

Intelligent & Safety Protection System

- Dual Heavy-Duty Brake System: Independent main brake and auxiliary emergency brake, with overspeed, under-speed and sudden stop protection.

- Enhanced Anti-Slip Safety Steps: Deepened grooved anti-slip steps + high-visibility yellow safety warning border to prevent slipping accidents in peak passenger flow.

- Global Standard Certification: Compliant with EN115 and international commercial escalator standards, certified with CE, ISO 9001, ISO 14001, meeting global high-standard commercial project requirements.

- Heavy-duty VVVF frequency conversion system intelligently adjusts speed and power according to real-time passenger flow, avoiding long-term high-power idle operation.

Application Scenarios

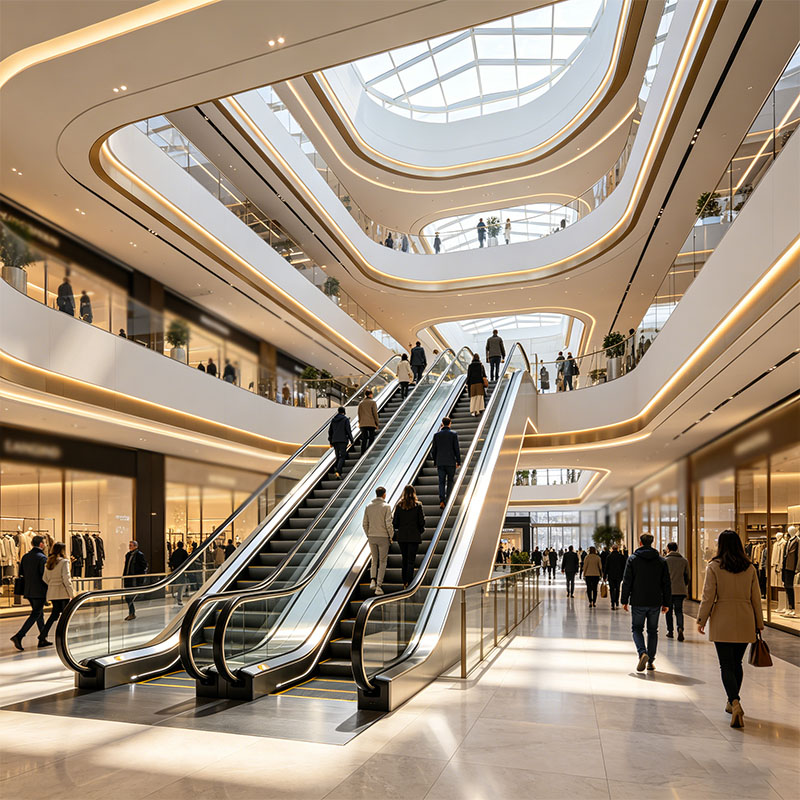

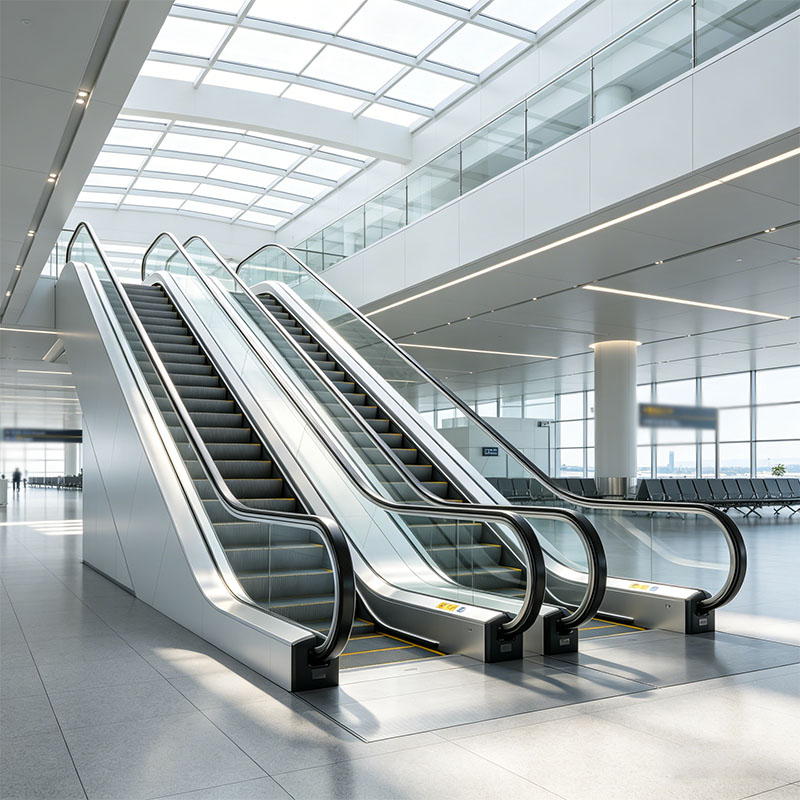

Ideal for large shopping malls, super commercial plazas, airport terminals, railway stations, subway stations, exhibition centers, large stadiums and other high-traffic public commercial places that require 24-hour heavy-duty continuous operation.
