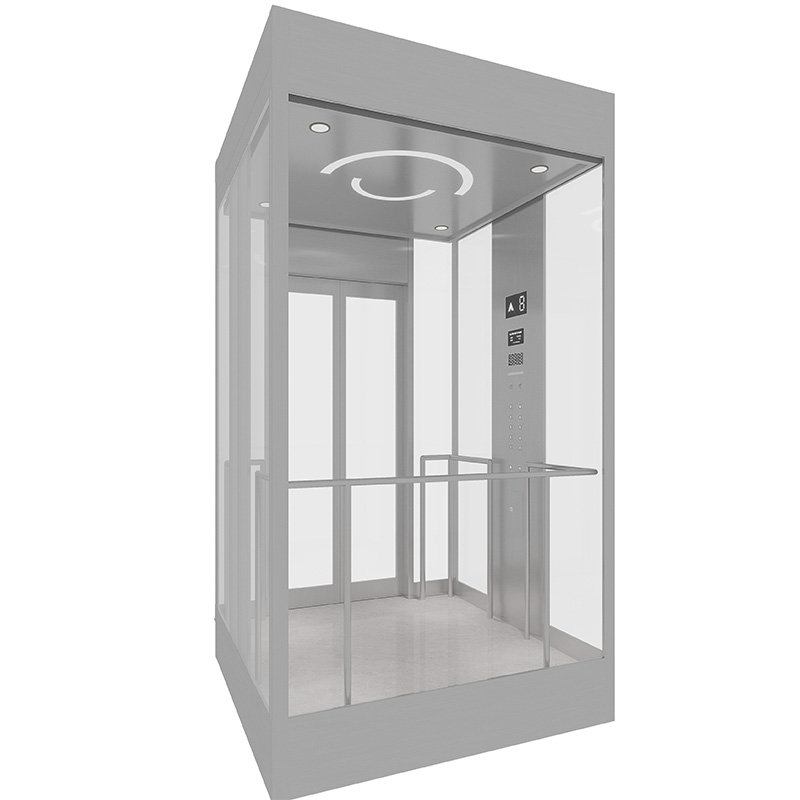

VVVF Passenger Elevator | Custom Decorative Building Lift

Smooth running luxury passenger elevator with VVVF variable frequency control. Custom cabin design and rich decoration options to meet hotel, mall and office high-end transportation needs.

Item	Specification
Rated Load	800kg / 1000kg
Passenger Capacity	10 Persons / 13 Persons
Rated Speed	1.0m/s / 1.5m/s / 1.75m/s
Drive Mode	VVVF Variable Voltage Variable Frequency Control
Car Size (W×D×H)	1400×1350×2400mm / 1600×1400×2400mm

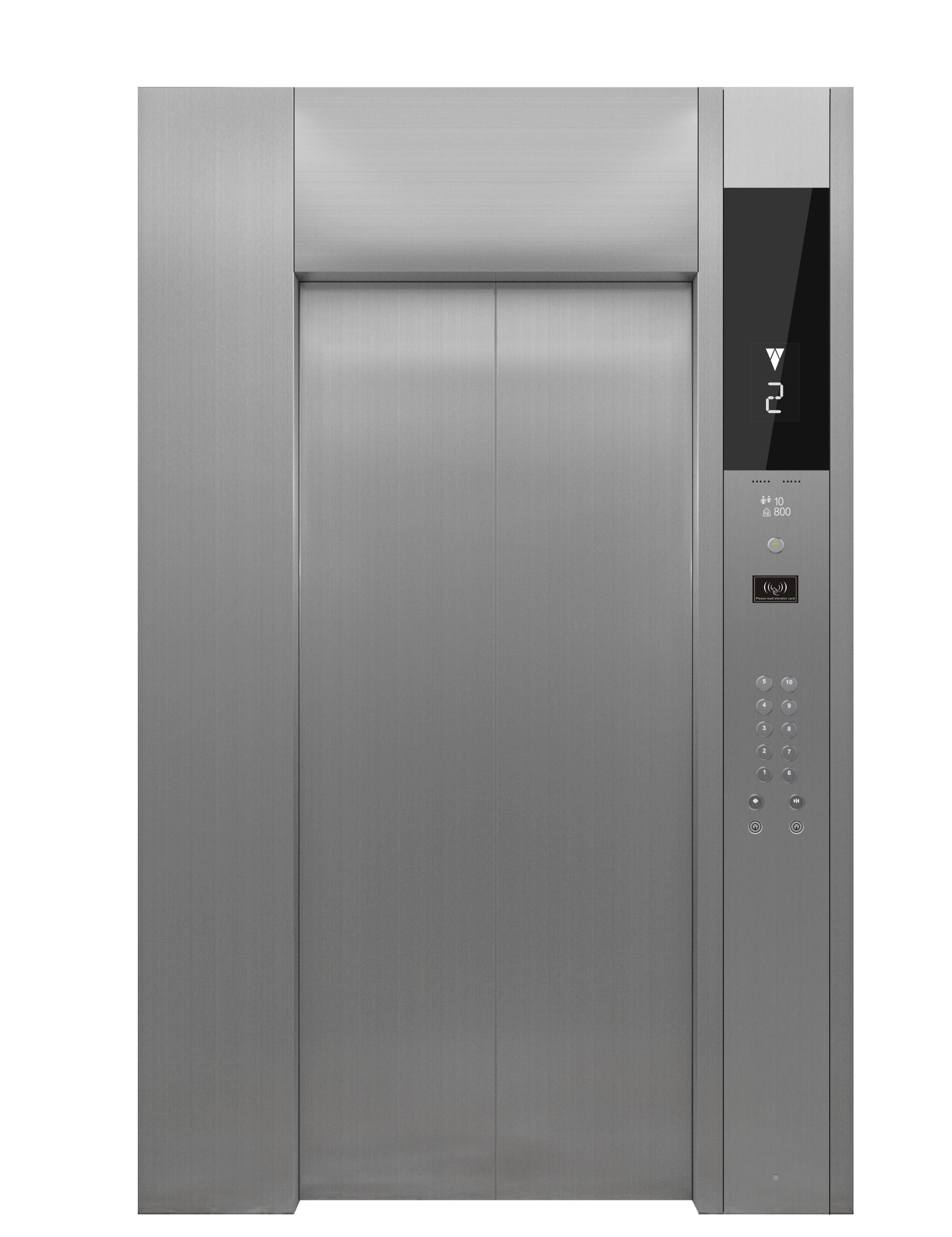

Standard Door	800×2100mm / 900×2100mm, center automatic door
Hoistway Size	2150×1850mm / 2300×1900mm
Pit Depth	1400–1600mm
Overhead Height	4200–4500mm
Max Travel Height	Up to 120m, 40 floors
Power Supply	380V / 50Hz, 3-phase

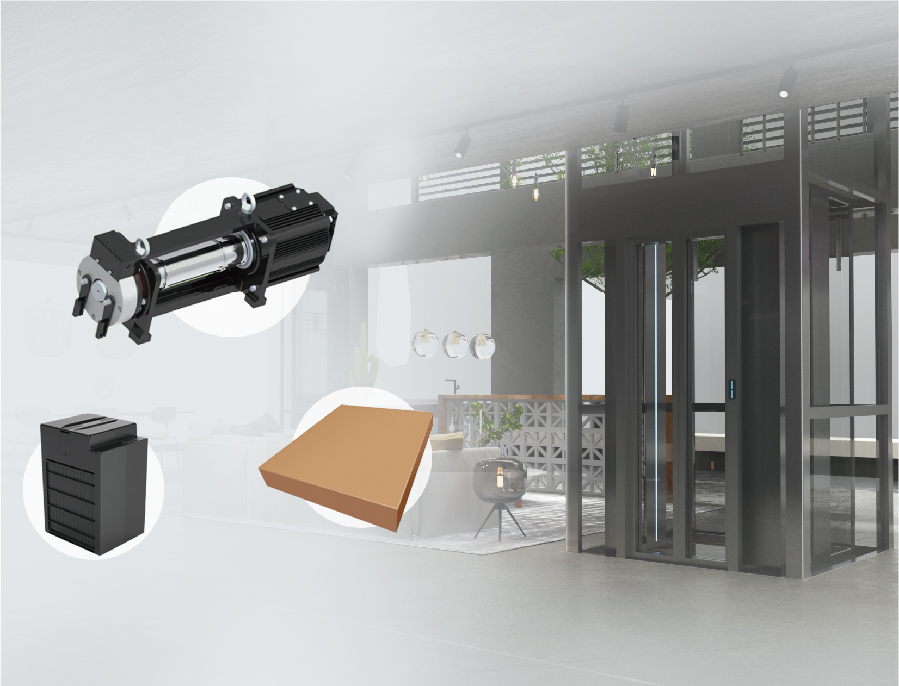

Traction System	Permanent Magnet Gearless Traction

Core Product Advantages

♦ Equipped with premium VVVF drive system, delivering stepless speed regulation, soft start & stop, stable and jolt-free riding.

♦ Wide applicability for residential buildings, offices, hotels, schools and commercial complexes with strong load adaptability.

♦ Optimized mute structure and low-vibration design, ensuring quiet, comfortable long-term operation.

♦ High operational stability and anti-fault performance, suitable for high-frequency use and peak passenger flow.

Full Customization

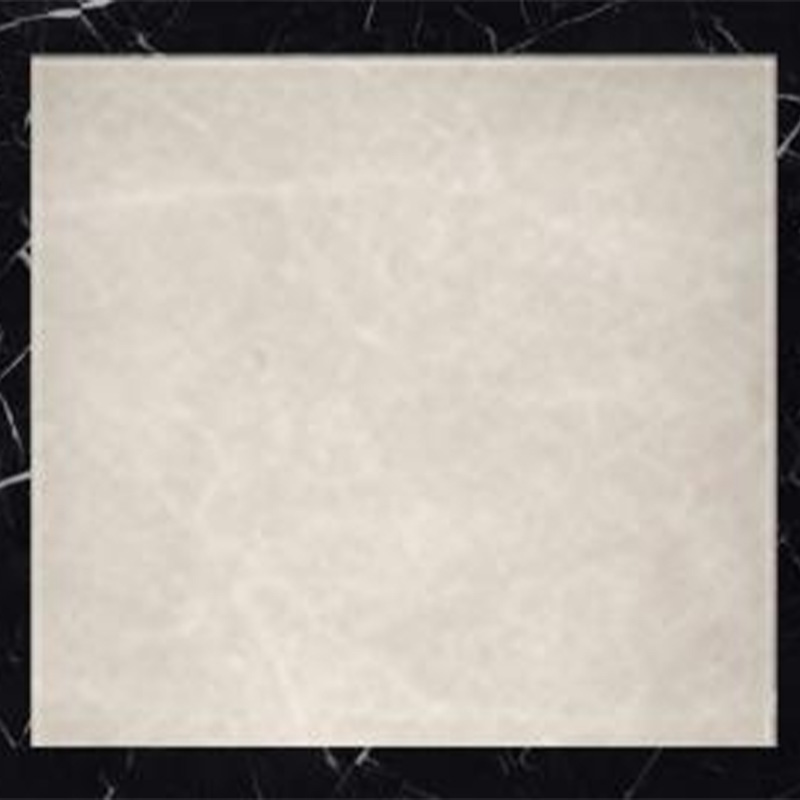

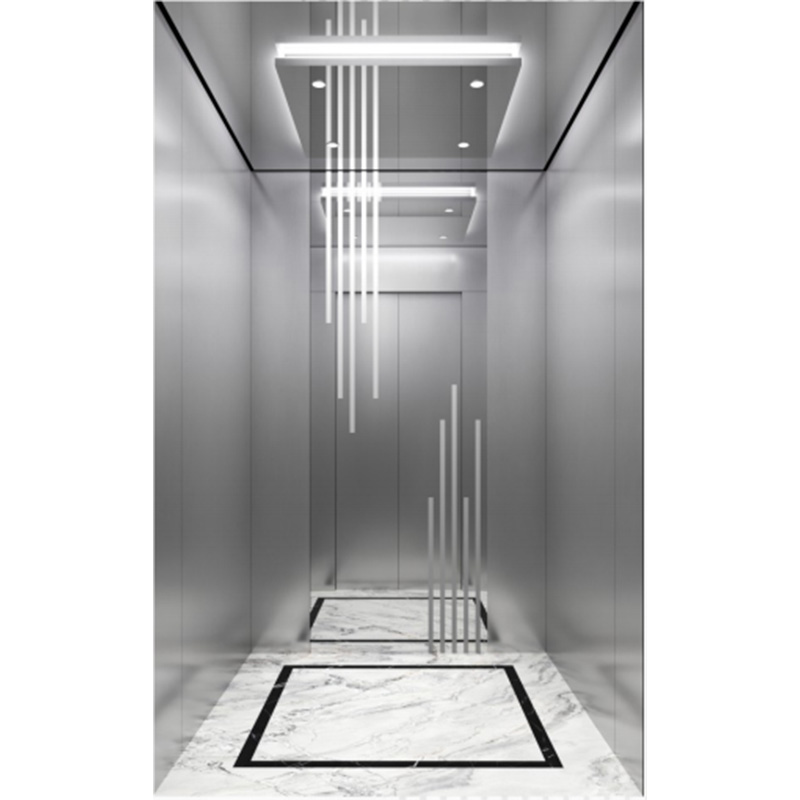

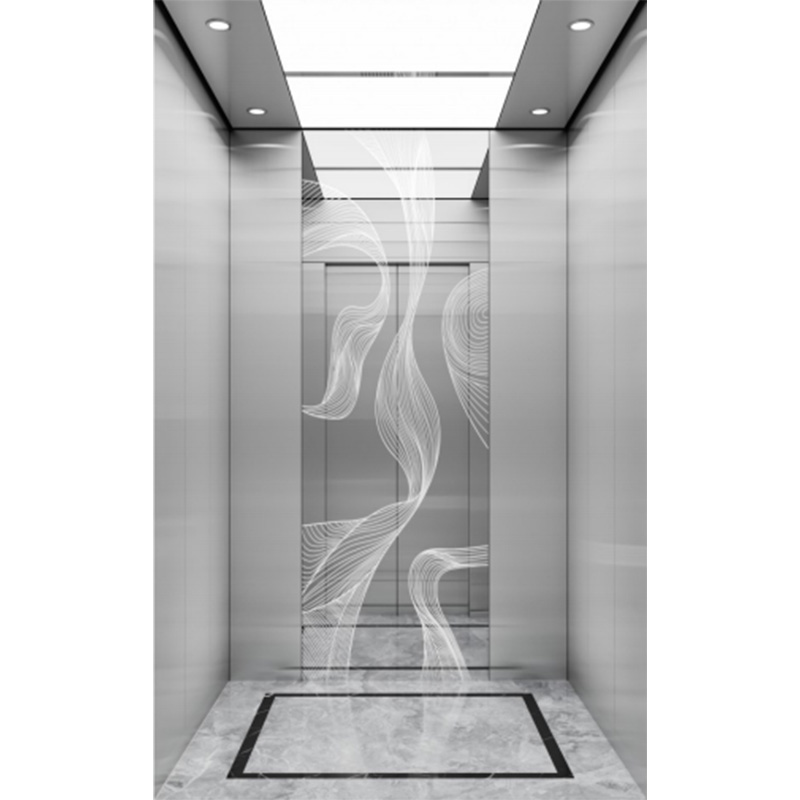

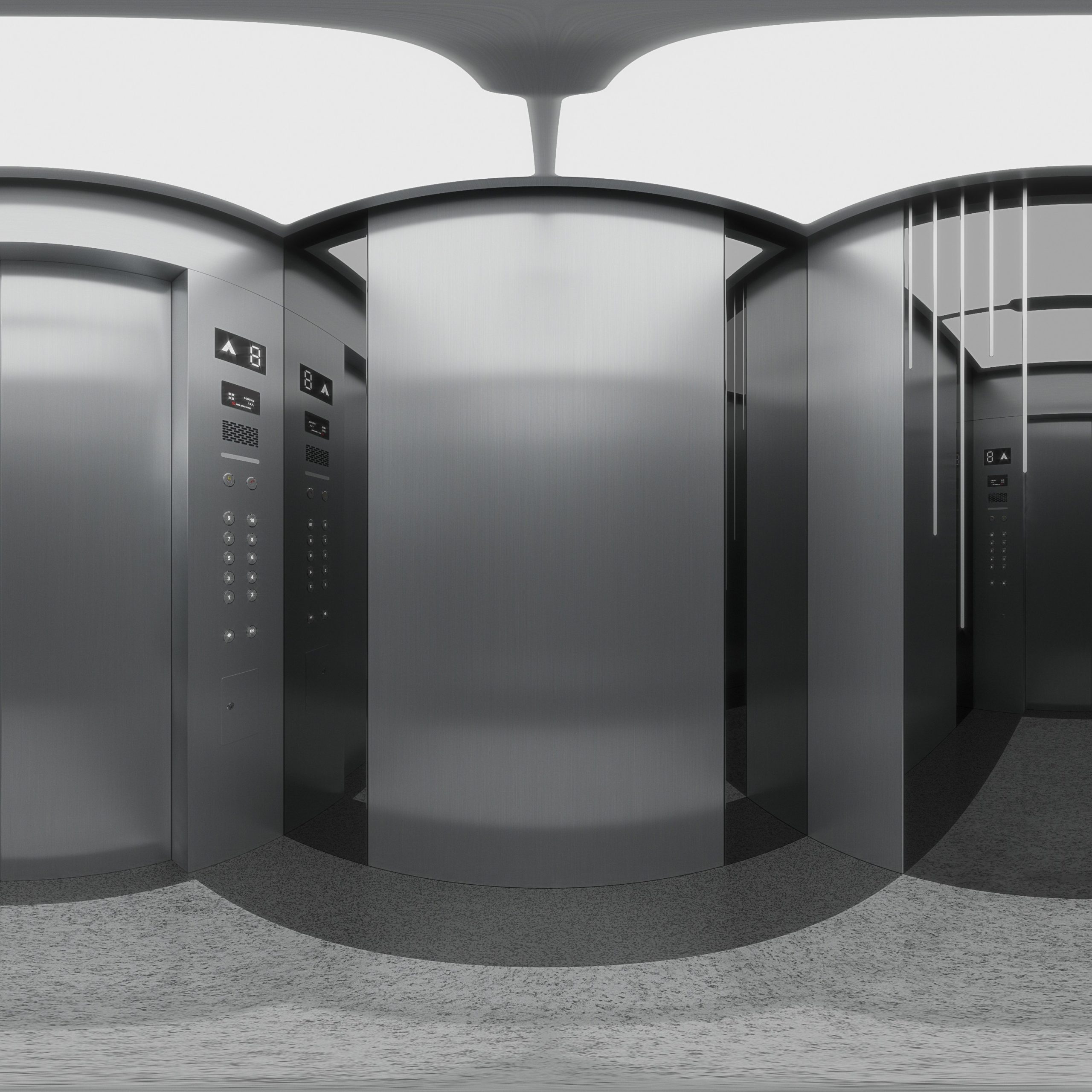

Interior Customization: Multiple finishes including stainless steel, mirror panel, titanium gold, wood grain veneer, marble flooring and LED ambient lighting.
Structure Customization: Custom car size, door width, side/center opening door to fit special shaft conditions.
Function Customization: Optional IC card, face recognition access, voice broadcast and personalized control panel.

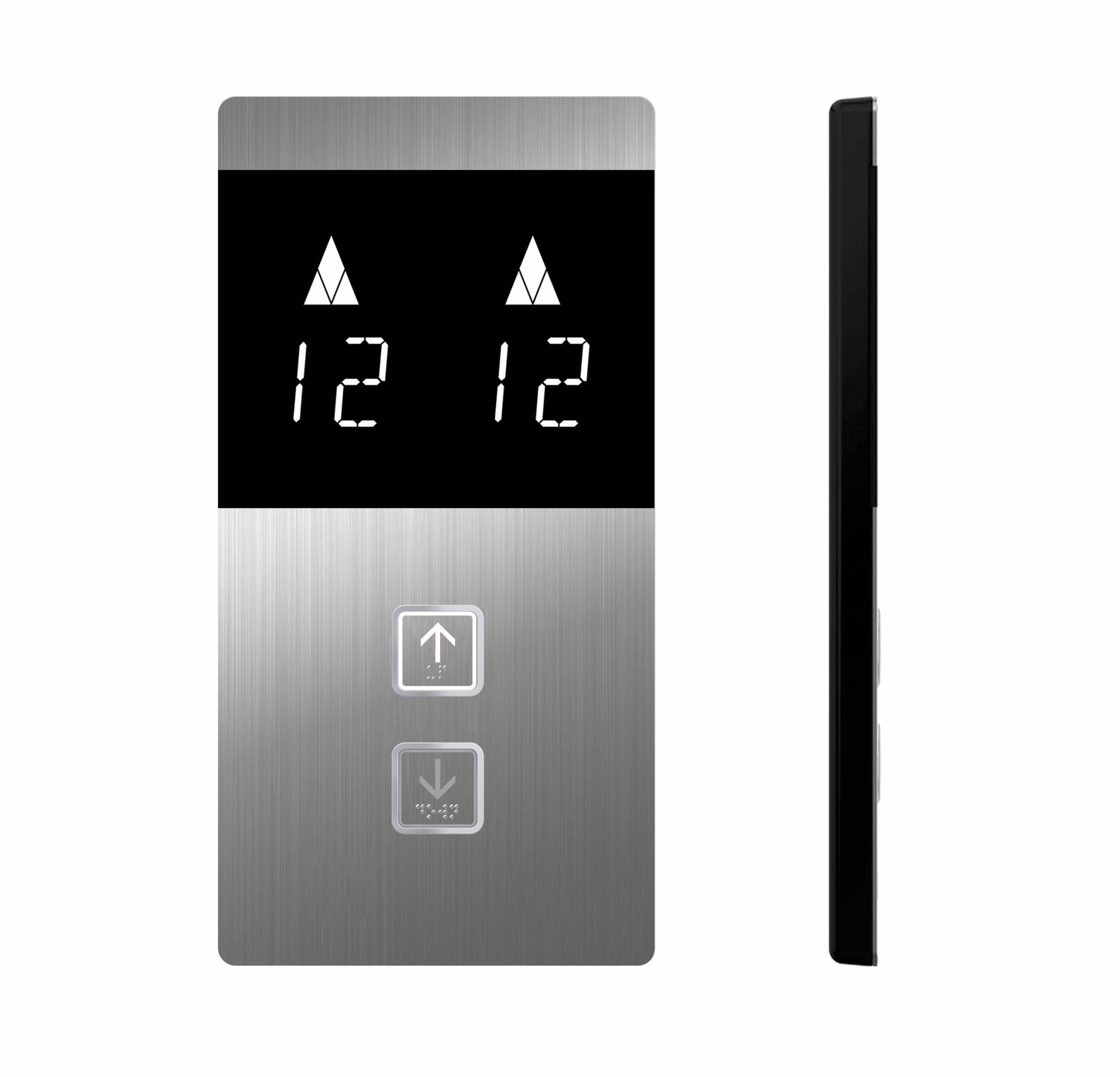

Brand Customization: OEM logo, exclusive car color and hall panel design for unified building style.

VVVF Intelligent Control

Precise VVVF frequency conversion control, auto-adjusting voltage and frequency for stable variable-speed operation.
Smart microcomputer control with fast signal response and efficient dispatching to shorten waiting time.
Humanized functions: auto door delay, overload alarm, fault self-inspection and one-key lock control.
Optional multi-elevator group control to ease traffic congestion in high-density buildings.

Safety Protection & Global Certification

◊ Complete safety devices: speed limiter, safety gear, buffer, door anti-pinch, overload protection and emergency stop.
◊ Built-in ARD automatic rescue device for power failure emergency leveling and door opening.
◊ Authorized global certifications: CE, ISO 9001, ISO 14001, fully meeting EU and international export standards.

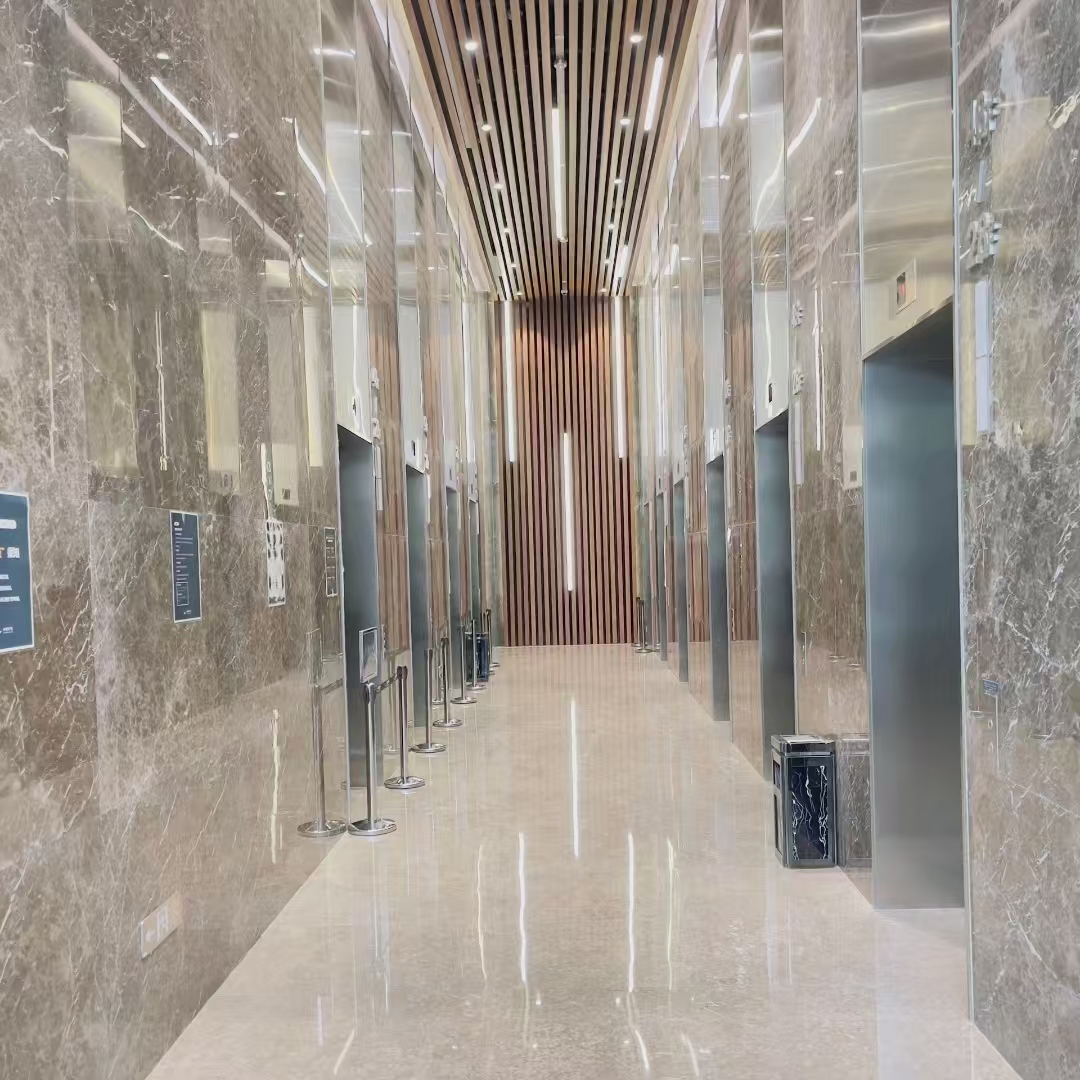

Application Scenarios

Ideal for mid-to high-rise residences, office buildings, hotels, schools, hospitals and commercial centers, serving as reliable daily vertical transportation equipment.
