Premium gearless traction passenger elevator with stable running, low noise and low consumption. High energy saving lift, permanent magnet design, custom load for commercial, residential, hotel and office buildings.
High Energy Efficiency: Adopts permanent magnet synchronous motor (PMSM) direct-drive system, eliminating gearbox friction losses. Reduces energy consumption by 25–40% vs. traditional geared elevators; integrated regenerative drive recaptures braking energy and feeds it back to the building grid, cutting power bills by up to 35%.
Smooth & Quiet Ride: Gearless design removes gear meshing noise; vibration ≤ 0.15 m/s², noise level ≤ 50 dB in the car. Ideal for premium residential, hotels, hospitals, and office buildings.
| Parameter | Specification |
|---|---|
| Rated Load | 630 kg (8 passengers) / 800 kg (10 passengers) / 1000 kg (13 passengers) |
| Rated Speed | 1.0 m/s / 1.5 m/s / 1.75 m/s |
| Traction Machine | PMSM Gearless, 7.5–15 kW |
| Drive System | VVVF Inverter + Regenerative Drive |
| Power Supply | AC 380V ±10%, 50 Hz (3-phase) |
| Car Size (W×D×H) | 1600×1400×2200 mm (1000 kg) |
| Hoistway Size (W×D) | 2000×1800 mm (1000 kg) |
| Safety Standard | EN 81-20/50, GB/T 7588, CE Certified |
Customization
♦ Capacity & Speed: Custom load (450–1600 kg) and speed (0.6–2.5 m/s) for low-rise to high-rise buildings.

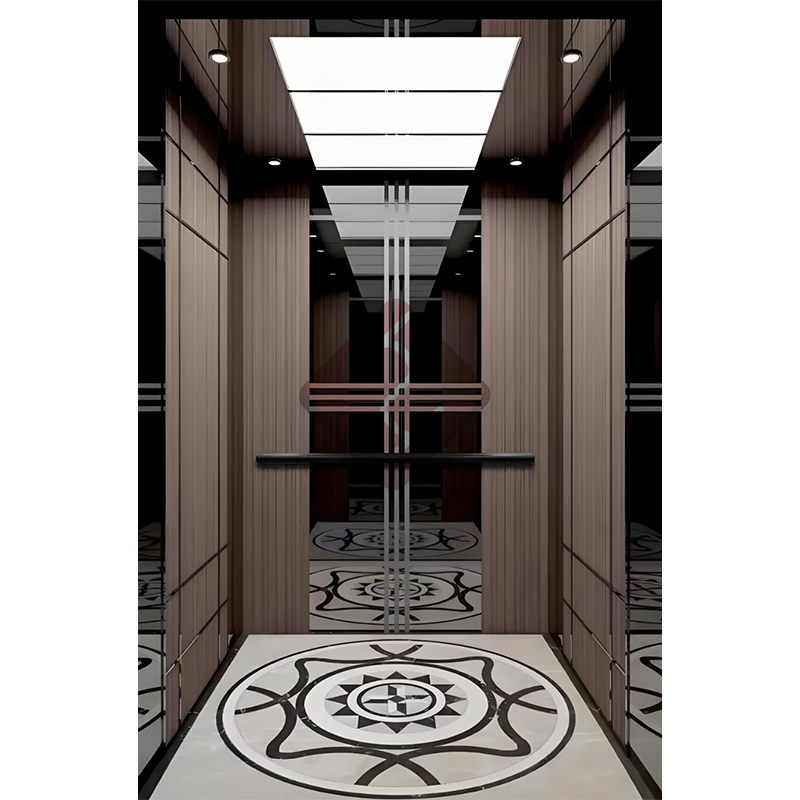

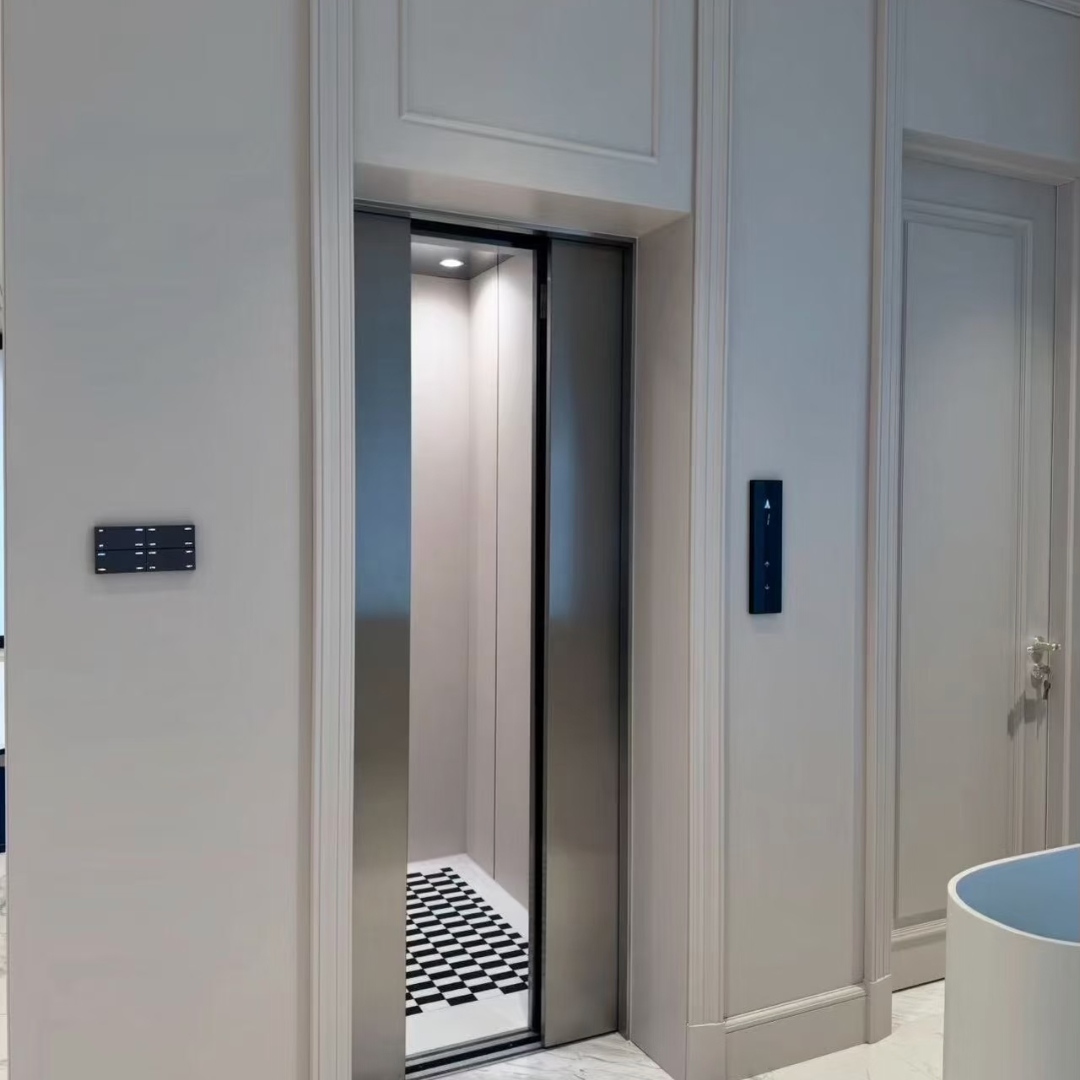

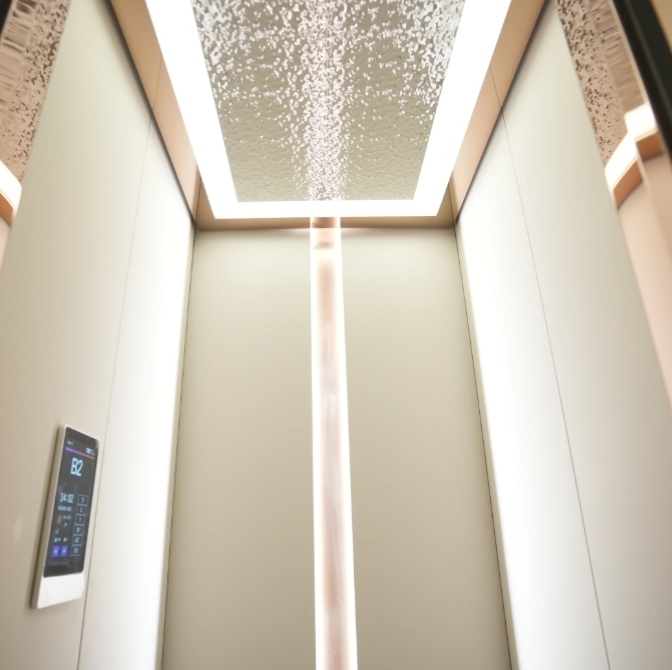

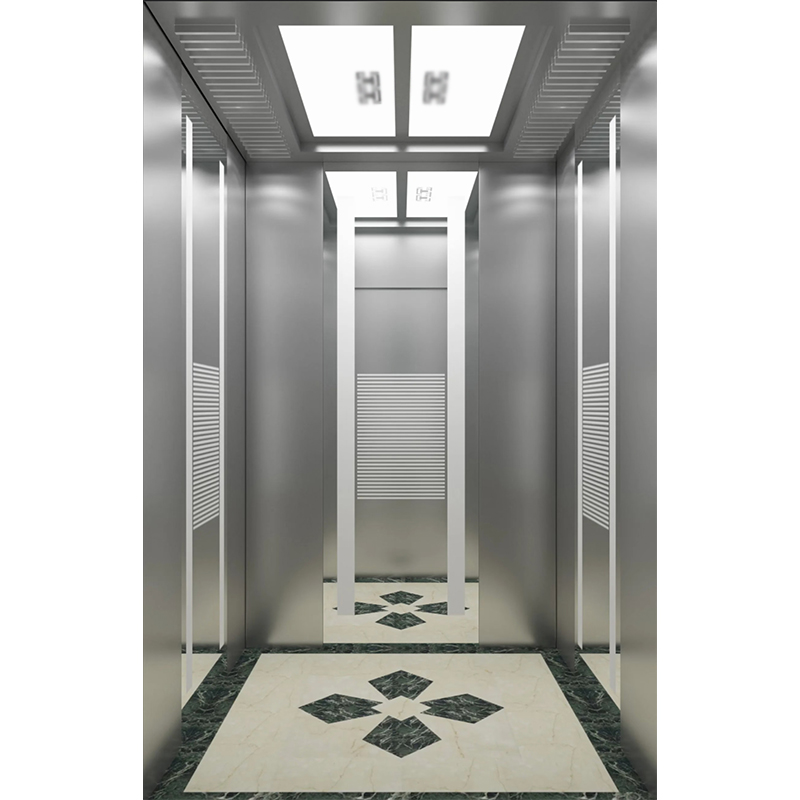

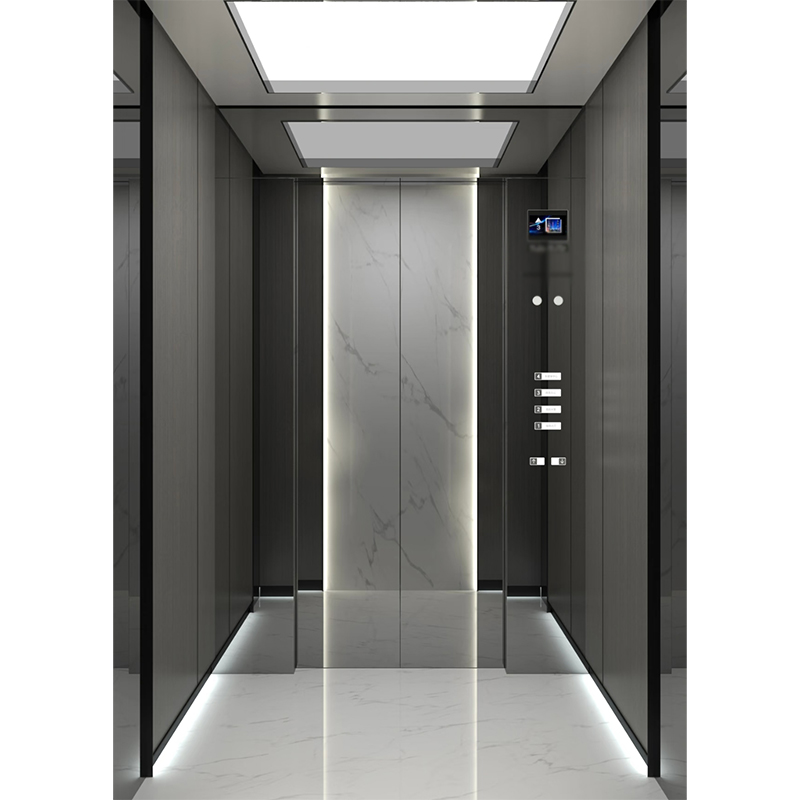

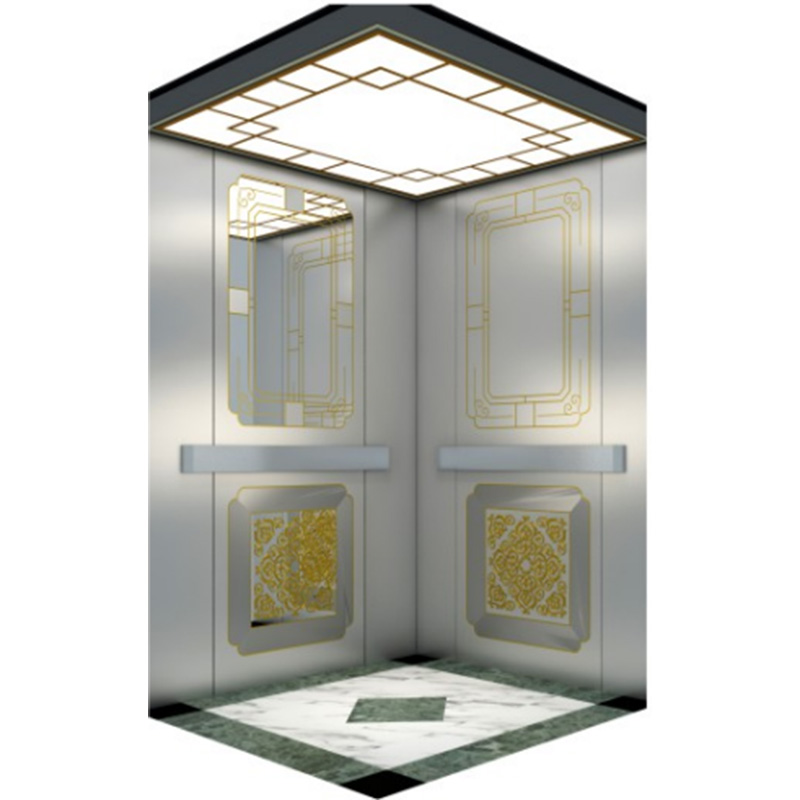

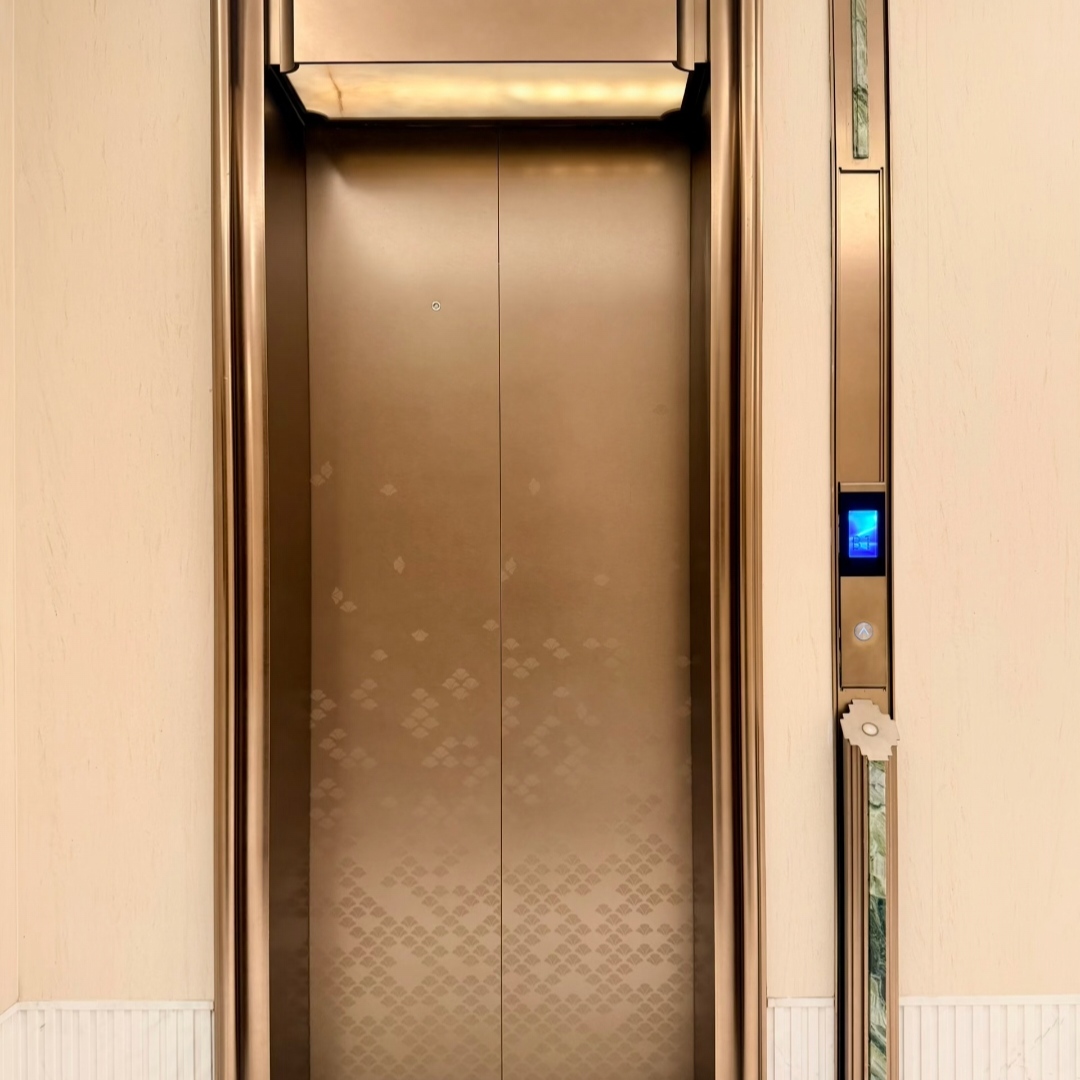

♦ Car & Decoration: Multiple cabin materials (stainless steel, glass, wood veneer), LED lighting, and flooring options; customizable door styles (center-opening, side-opening).

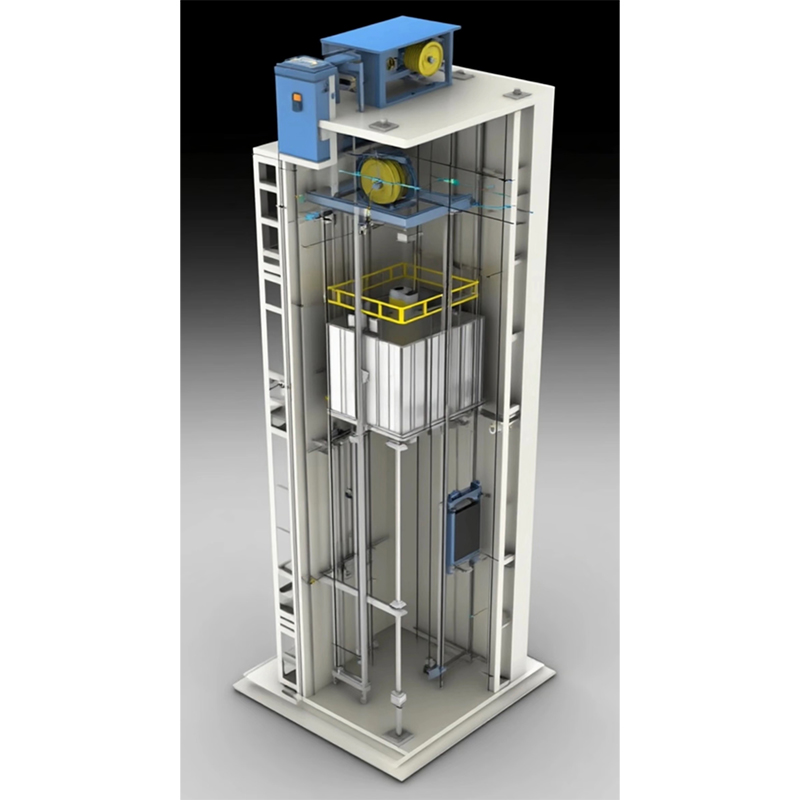

♦ MRL/MR Configuration: Flexible machine room or machine-room-less design to fit architectural constraints.
♦Special Functions: Optional fire-rated, earthquake-resistant, or hospital-grade (stretcher) configurations.
Intelligent
AI-Powered Smart Dispatching: IoT-based smart elevator control optimizes car allocation via real-time traffic analysis, reducing waiting time by ≥30%
Adaptive Energy Management: Load-sensing VVVF drive adjusts motor output dynamically; sleep mode cuts standby power to ≤50W during low-traffic periods.
Remote Monitoring & Diagnostics: 24/7 cloud-based monitoring for real-time fault alerts and predictive maintenance.

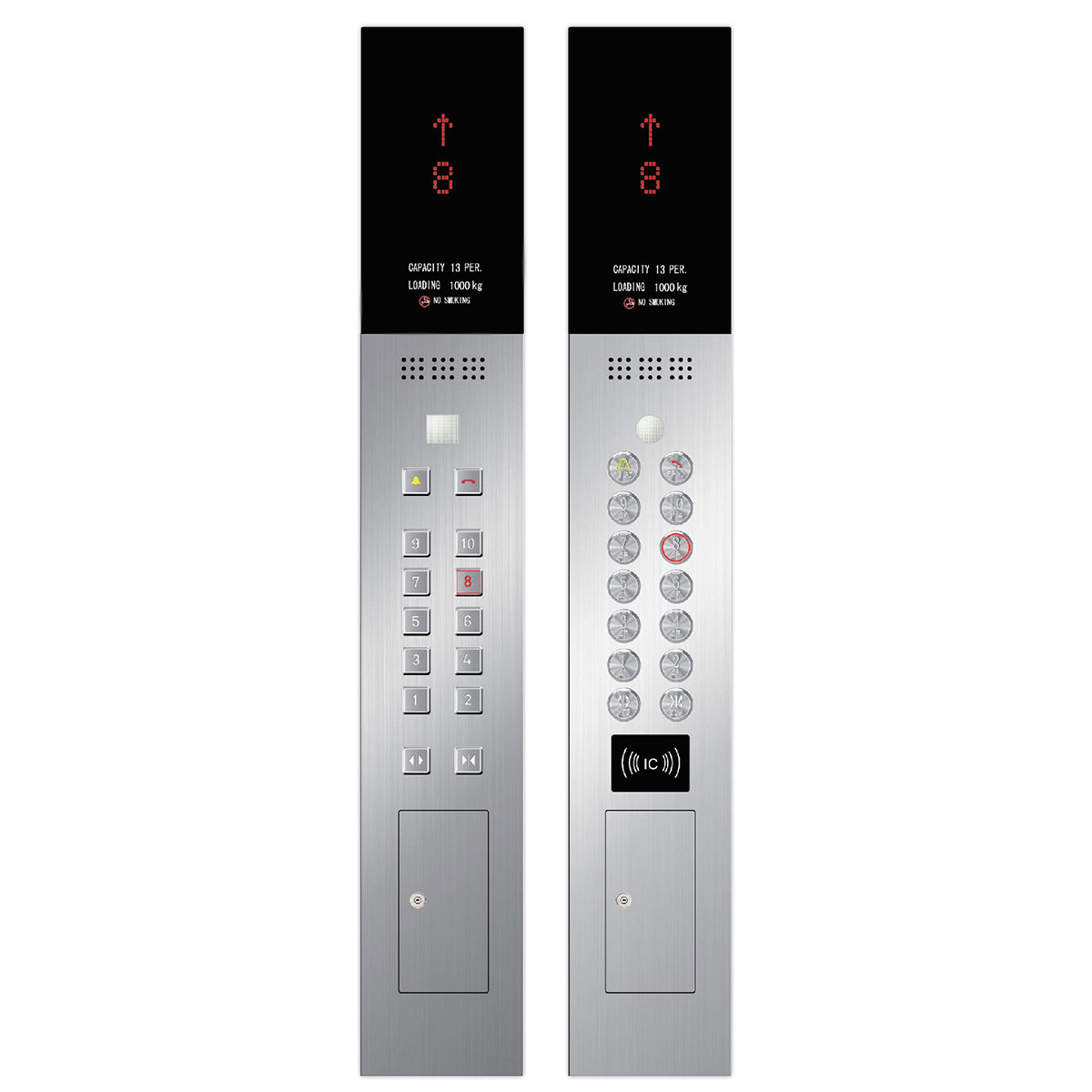

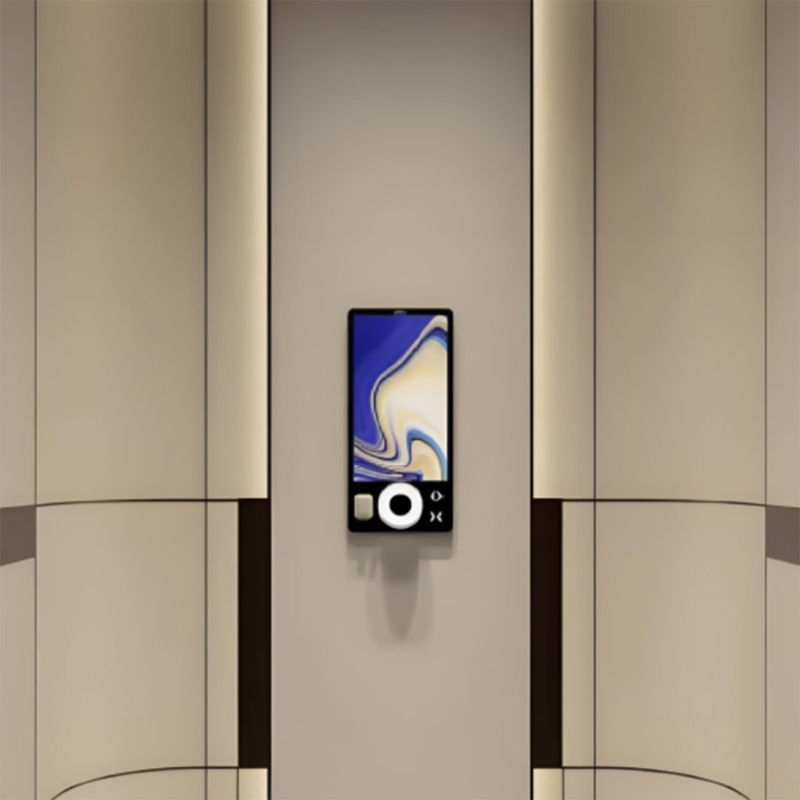

Touchless Operation: Optional NFC control for hygiene and convenience.
Industry-Leading Safety & Certifications
Comprehensive Safety Features: Over-speed governor, door interlocks, emergency stop, overload protection, and earthquake sensors comply with global standards.
Green & Safety Certifications: CE, ISO 9001, ISO 14001, and LEED-compliant for sustainable building projects.
Energy-Saving
◊ Best-in-class energy efficiency: 25–40% lower energy use than conventional geared elevators.
◊ Energy recovery system: Recycles 30–35% of braking energy for building reuse.
◊ Eco-friendly operation: Zero oil pollution, low noise, and reduced carbon footprint for green building certification.
◊ Cost-saving performance: Lowers annual electricity and maintenance costs by ≥35%
