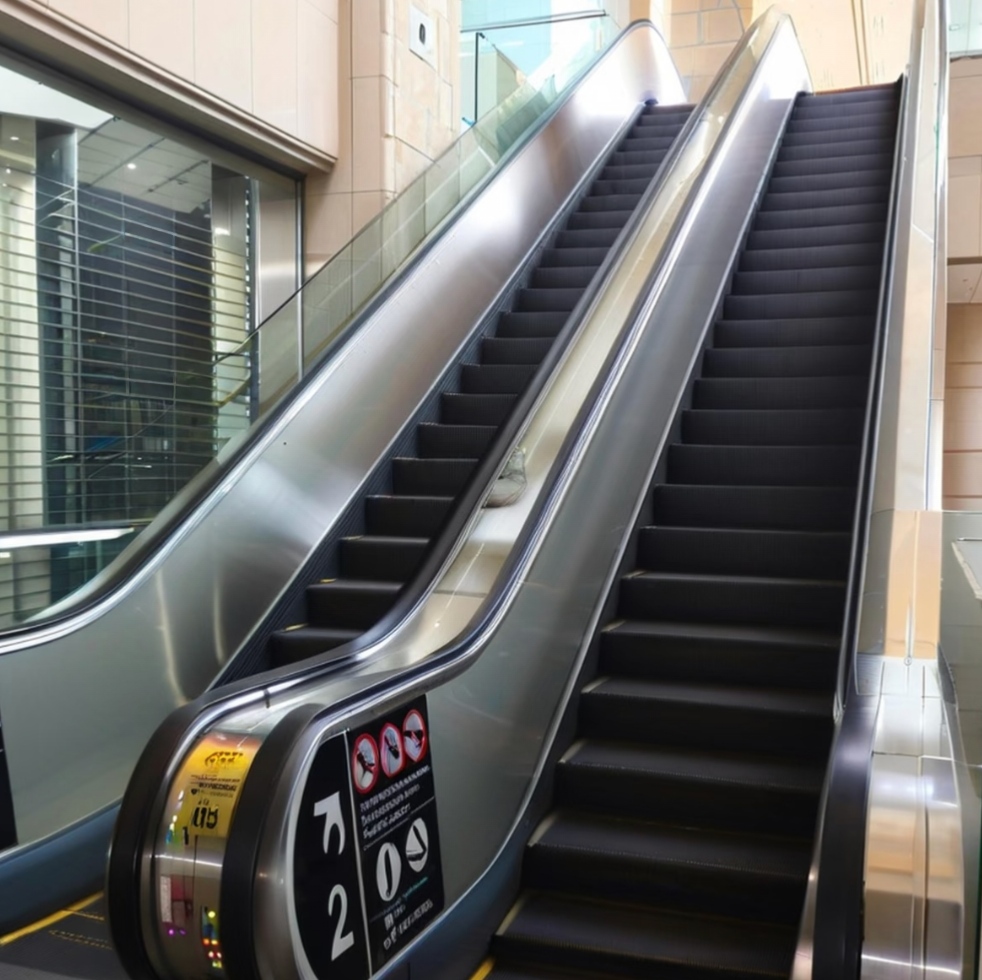

Waterproof outdoor automatic escalator with rainproof and corrosion resistant design. Safe pedestrian conveyor escalator for scenic spot, railway station and outdoor commercial plaza.

Specification Item
Technical Data
Inclination Angle
30° / 35° Optional
Rated Speed
0.5m/s Standard Public Speed
Step Width
800mm / 1000mm (Public standard width)
Max Lifting Height
3m – 8m
Passenger Capacity
6000 – 9000 Persons/Hour
Waterproof Grade
IP54 All-round Waterproof
Drive System
VVVF Variable Frequency Drive
Frame Treatment
Hot-dip Galvanized + Anti-rust Spraying
Handrail Type
Weatherproof Anti-aging PVC Handrail
Working Temperature
-20℃ ~ +60℃ All-temperature Operation
Power Supply
380V/50Hz Industrial Power
Operation Mode
Automatic Induction / Continuous Operation

Product Description

- Full All-Weather Weatherproof Design: Professional IP54 waterproof grade, fully sealed mechanical structure, effectively preventing rainwater, snow, dust and fog from invading core parts, normal operation in rainy, snowy and sunny high-temperature weather.

- High Passenger Flow Bearing Capacity: Commercial heavy-grade configuration, supporting 24-hour intermittent operation, stable output under long-term high-density pedestrian flow, suitable for busy public outdoor scenarios.

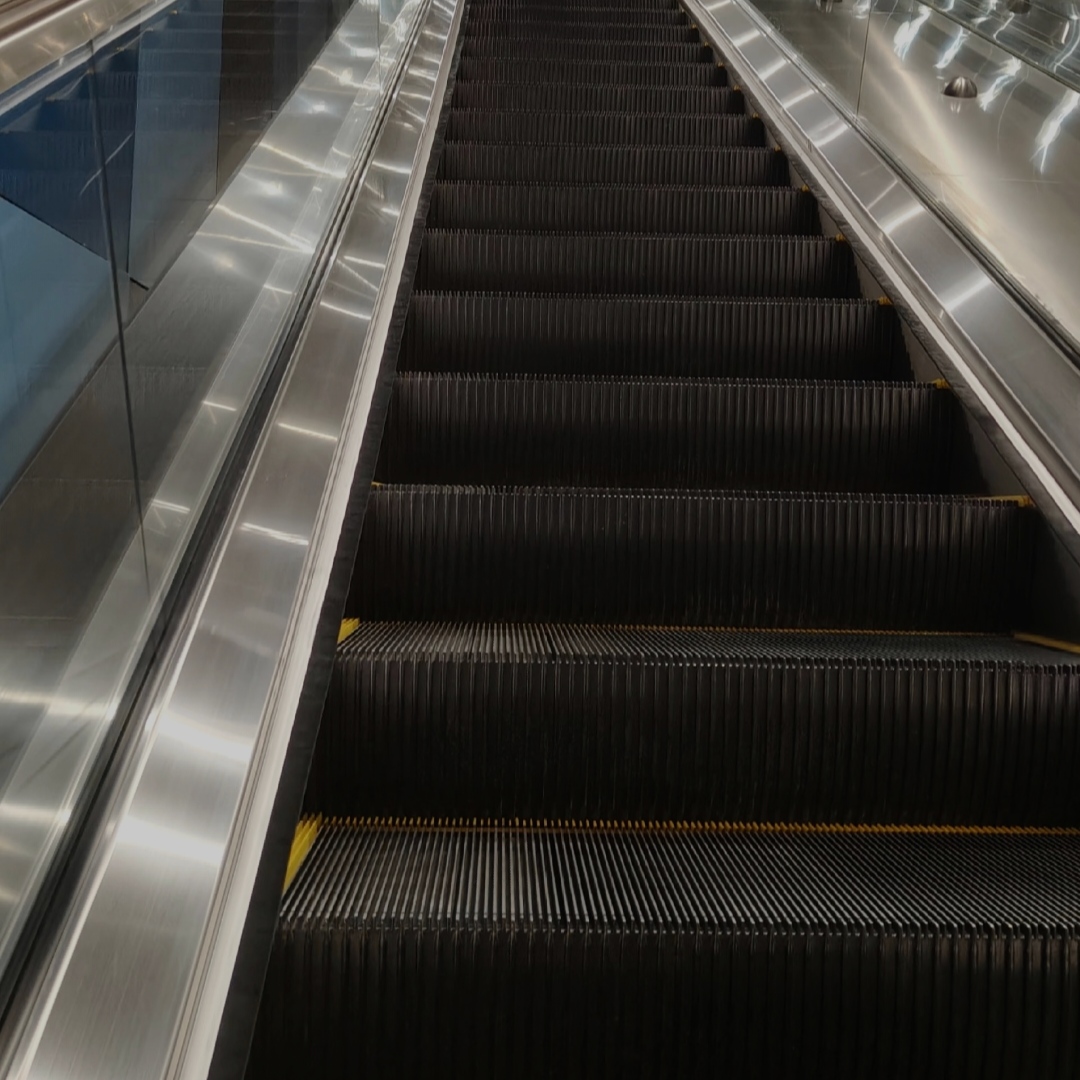

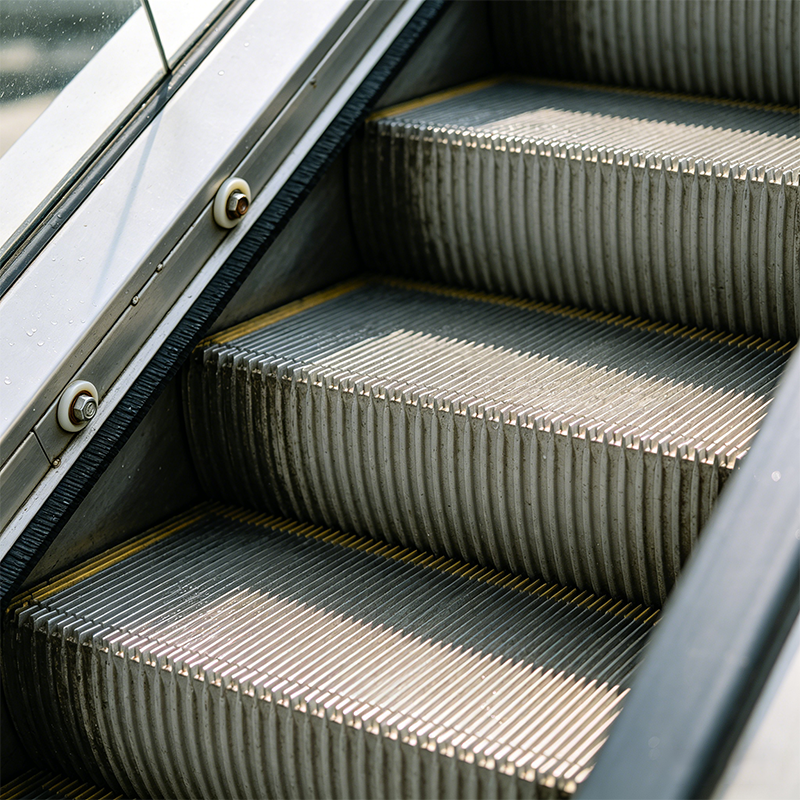

- Anti-Slip & Anti-Freeze Safety Performance: Thickened anti-slip grooved steps + outdoor anti-freeze materials, preventing slipping in rainy, snowy and frosty weather, ensuring pedestrian safety.

- Intelligent VVVF Energy Saving System: Passenger flow induction automatic speed regulation, low-speed standby when idle, reducing long-term outdoor power consumption and operating costs.

Professional Outdoor Structural Design

- All-Weather Sealed Waterproof Structure: Fully enclosed motor, gearbox and electrical control box with waterproof rubber gaskets and drainage holes, effectively draining rainwater and preventing water accumulation and short circuit.

- Outdoor Special Wear-Resistant Components: The transmission chain, guide rail and steps are made of enhanced weather-resistant materials, adapting to long-term outdoor harsh environment operation.

- Independent Drainage System: Built-in centralized drainage structure to quickly discharge rainwater and melted snow, no water accumulation inside the equipment.

- Wind-Resistant Stable Structure: Reinforced integral welding structure, strong wind resistance, stable operation in windy outdoor open areas.

Safety System & Energy Saving

- Dual Emergency Brake System: Equipped with overspeed, under-speed and brake loss protection, realizing instant stable stop in emergency situations.

- International Standard Certification: Comply with EN115 & GB16899 escalator standards, withCE, ISO 9001, ISO 14001 certifications, suitable for global public outdoor projects.

- Advanced VVVF frequency conversion technology intelligently adjusts operating speed according to pedestrian flow, reducing invalid power consumption by more than 35%.

- Automatic idle standby mode, intelligently switching to low energy consumption state during off-peak hours to save public operation costs.

Application Scenarios

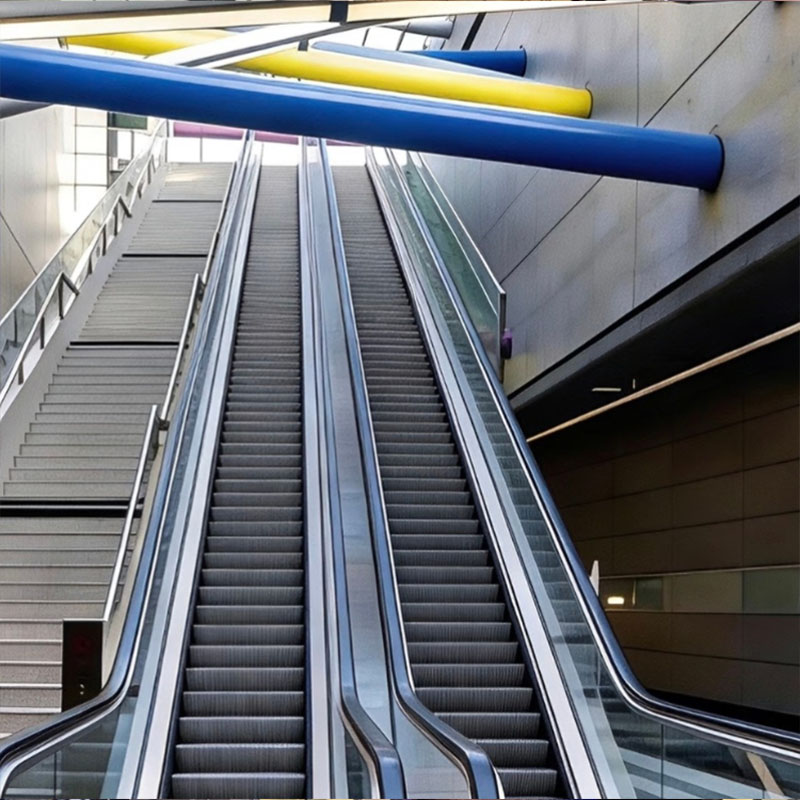

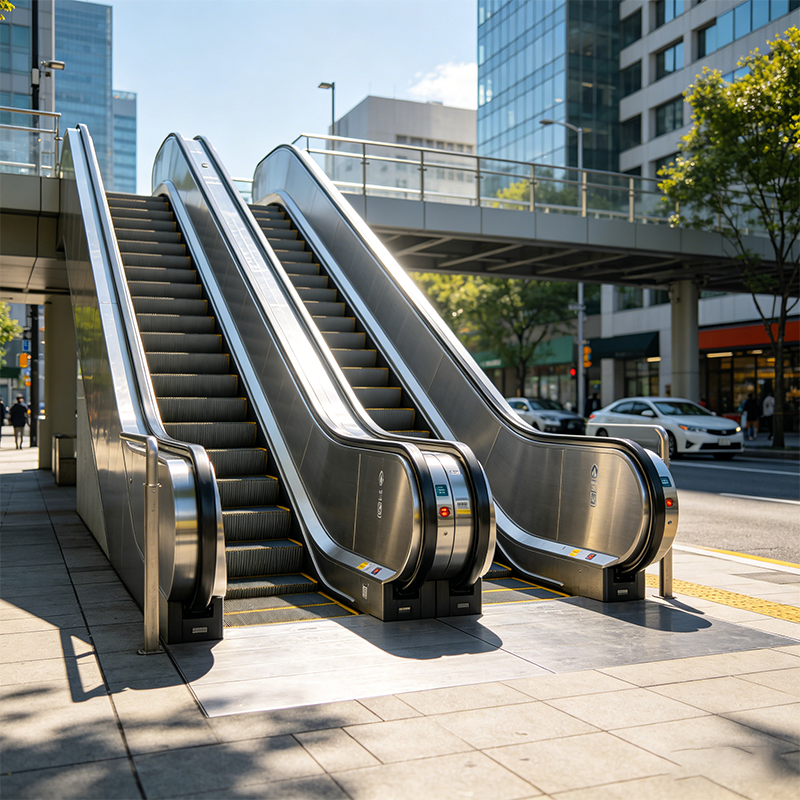

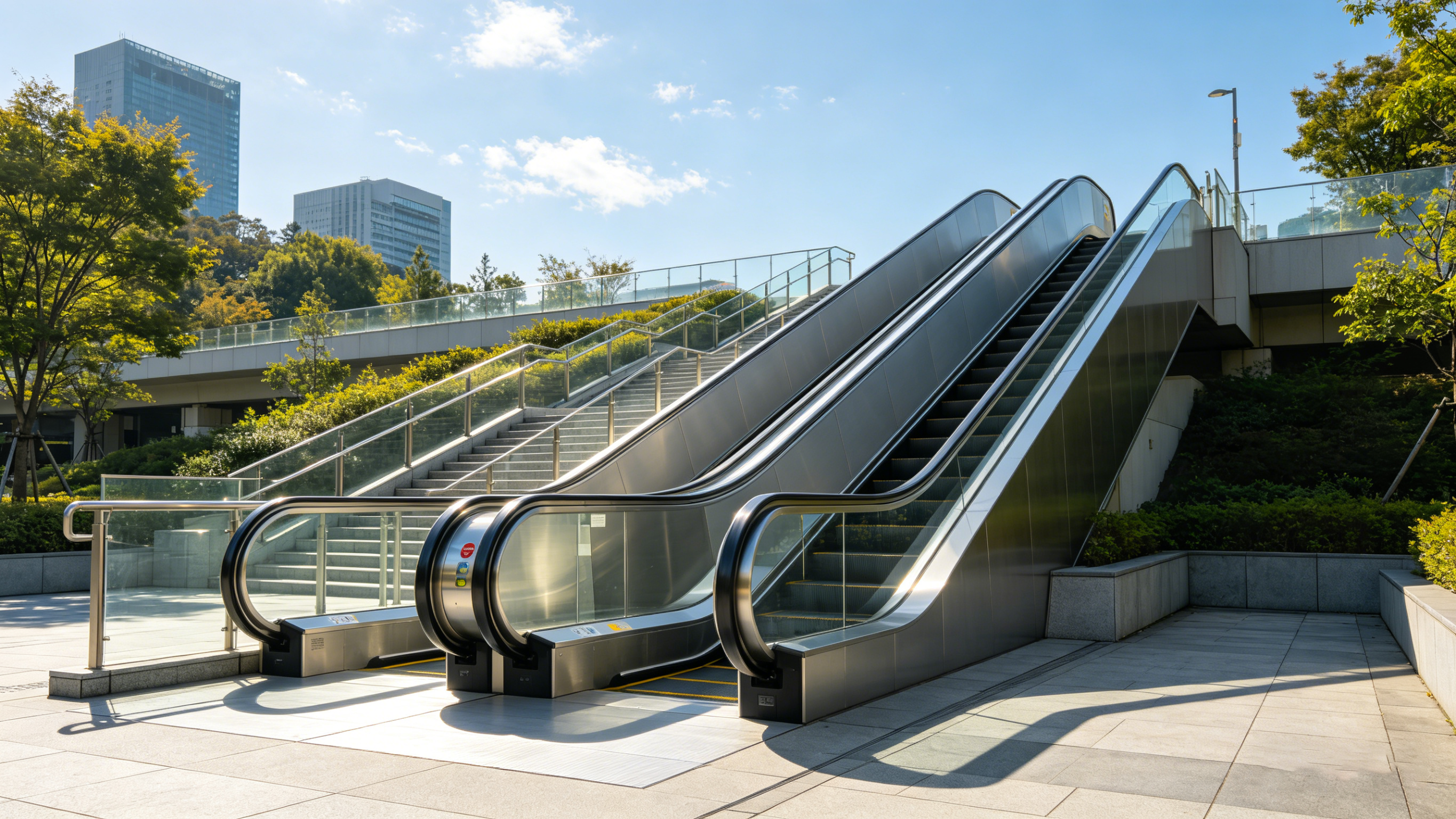

Suitable for scenic tourist areas, outdoor commercial streets, city overpasses, railway stations, bus stations, airport outdoor corridors, waterfront parks, open-air plazas and other all-weather outdoor public transportation scenarios.
