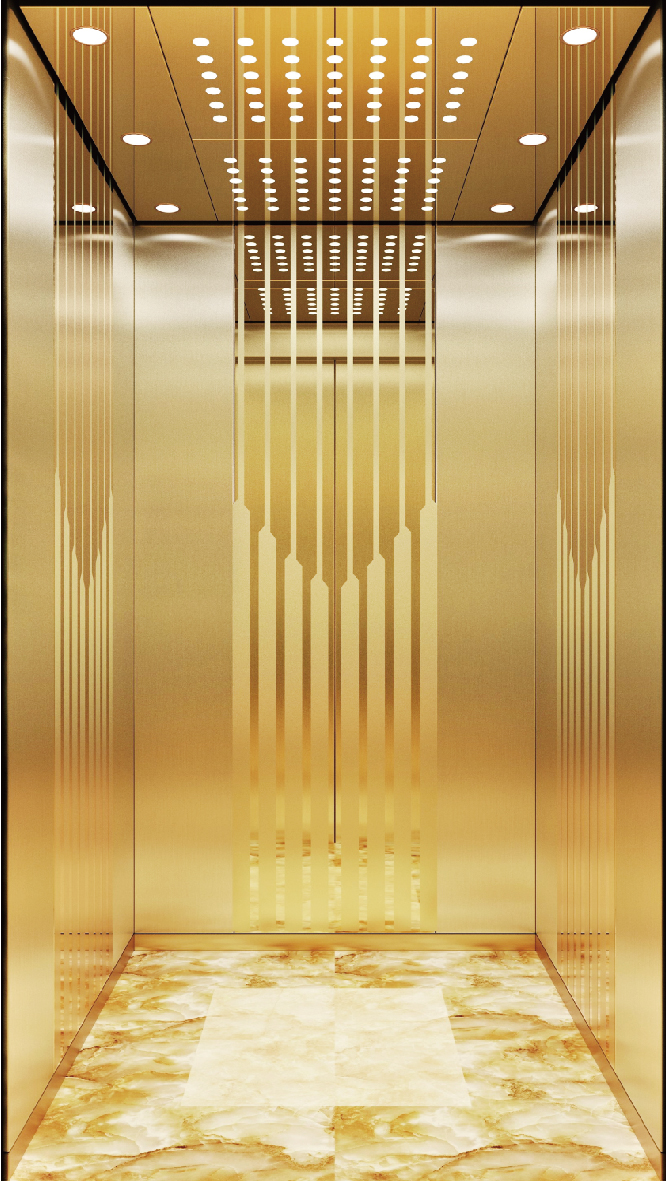

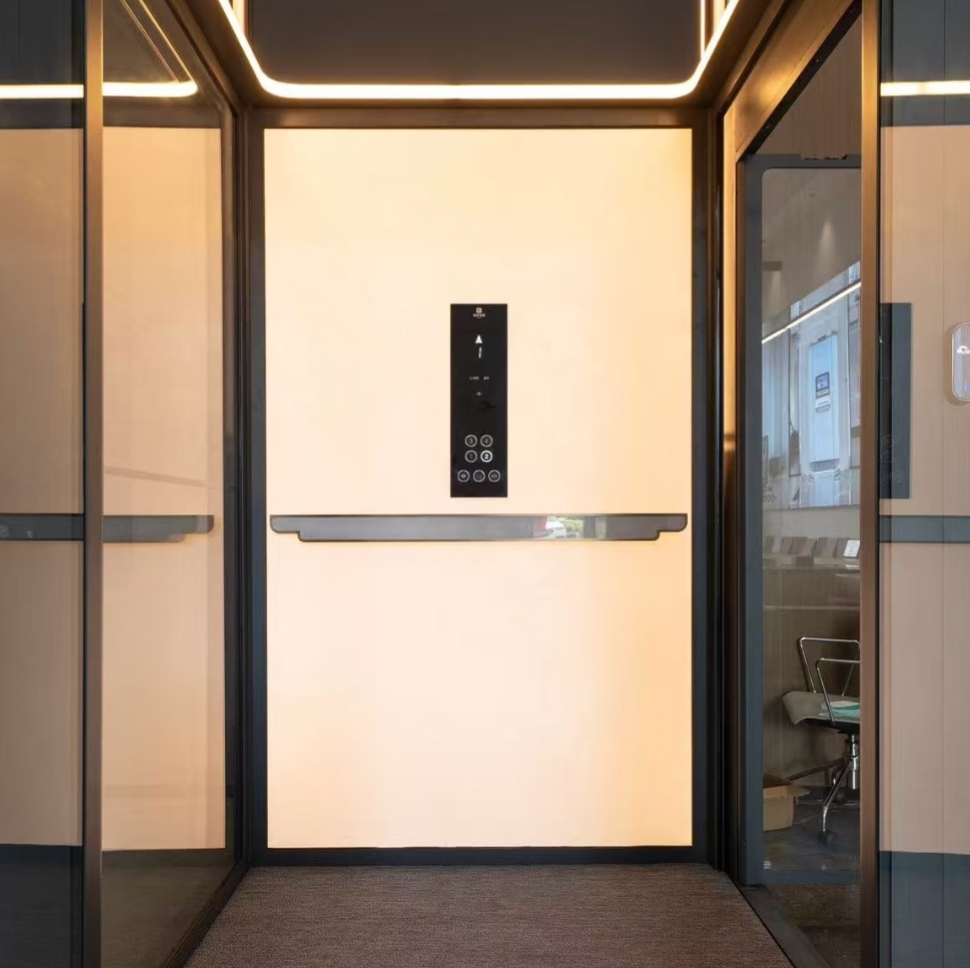

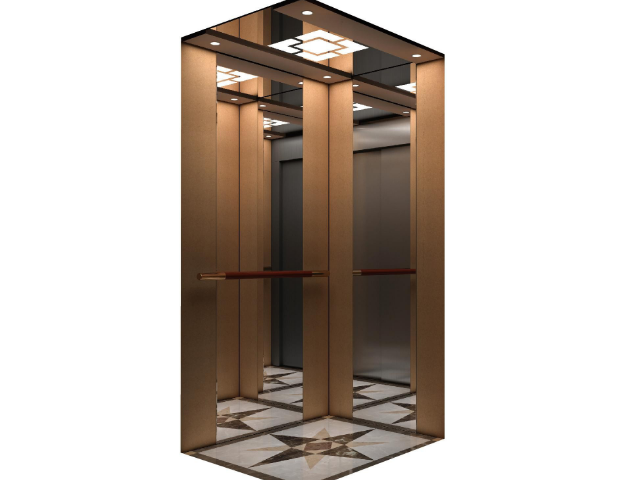

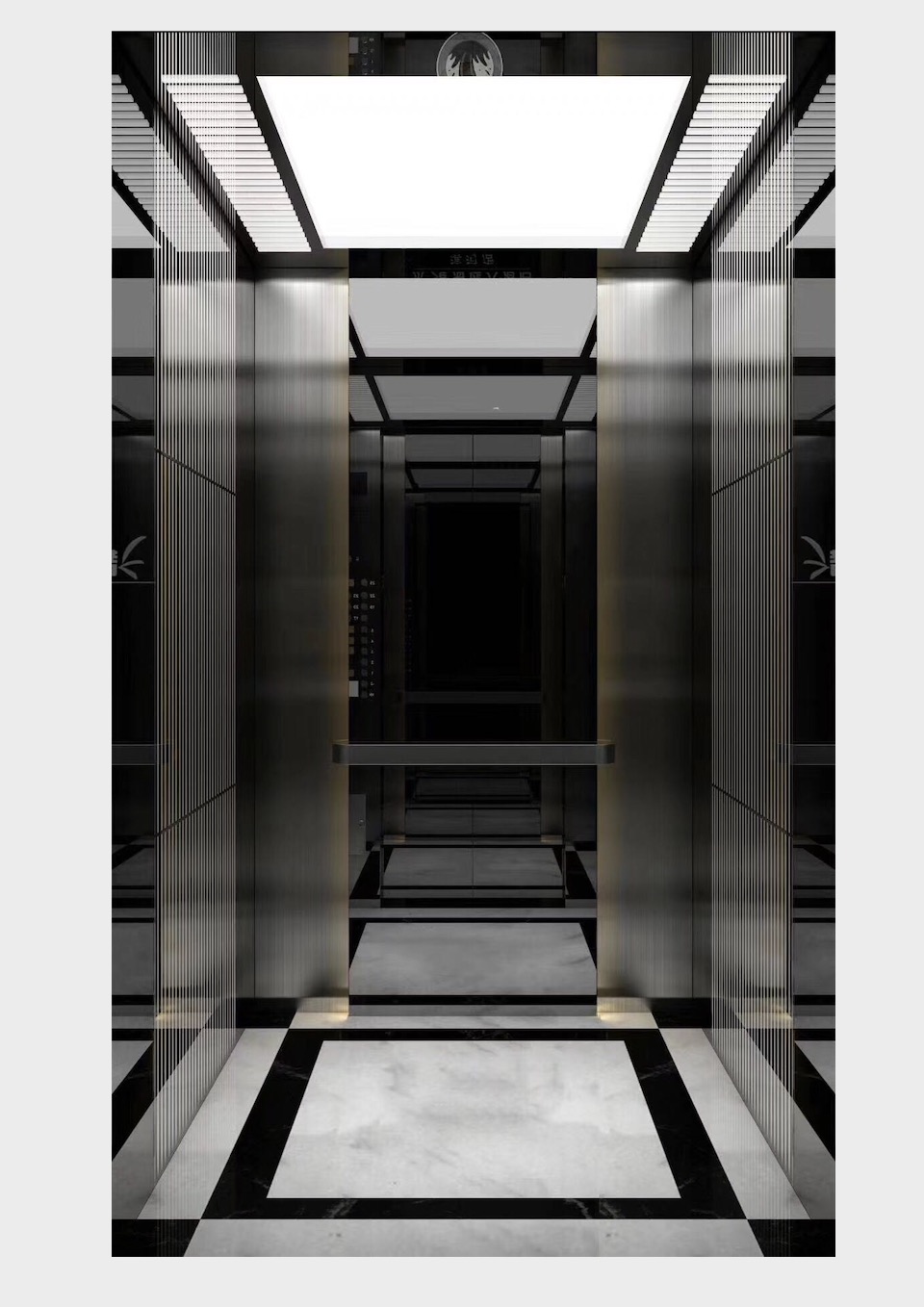

High quality home elevator designed for private villa and residential use. Quiet operation, safe stable running, customized size and interior decoration for indoor home vertical transportation.

Specification ItemTechnical Standard Data
Rated Load250kg -400kg
Passenger Capacity2–5 Persons
Rated Speed0.4m/s , 0.7m/s
Max Stop Floors2–6 floors
Car Dimension (W×D×H)800×1100×2100mm / 1000×1200×2100mm
Door Opening Size700×2000mm / 800×2000mm
Hoistway Size1400×1500mm / 1550×1600mm
Pit Depth0–200mm (pitless optional)
Overhead Height2600mm–3000mm
Power Supply220V/50Hz household power
Drive TypePermanent Magnet Gearless / Screw Drive

Core Product Advantages

♠ Designed exclusively for luxury villas, private residences and high-end residential homes
♠ Machine room less & pitless optional design, low requirement for civil engineering, saves construction space
♠ Ultra-silent and low-vibration running performance, stable smooth operation
♠ Adopts premium traction/screw drive system, soft start and gentle stop

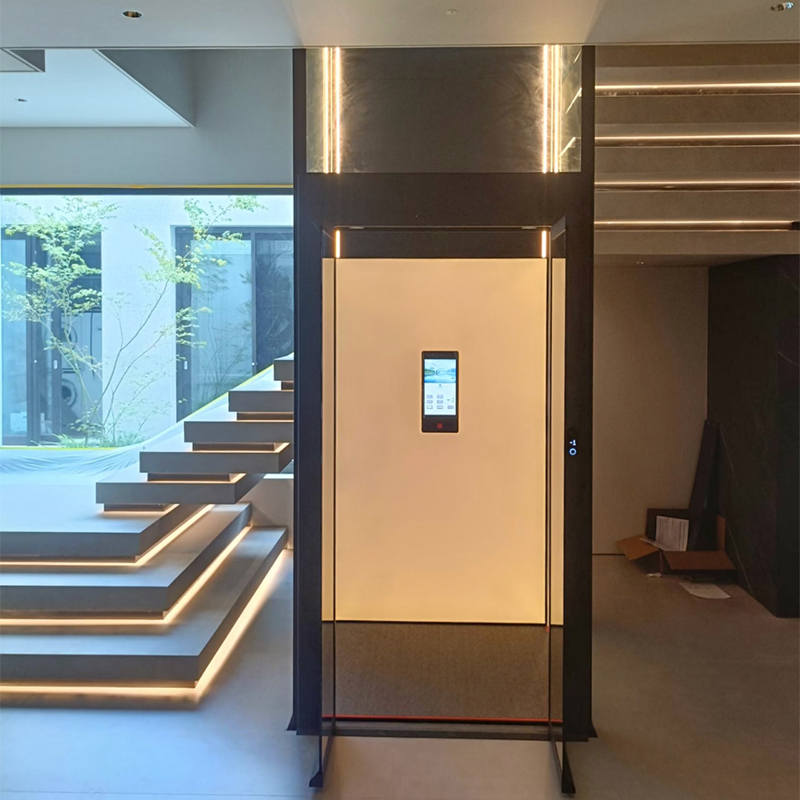

♠ Small footprint, flexible installation in stairwell, corner, indoor and outdoor wall-mounted positions.

Safety Protection & Global Certification

♦ Complete household safety configuration: door anti-pinch device, overload protection, emergency stop button and speed limit protection.

♦ Intelligent fault self-check system, real-time monitoring operating status and hidden danger warning.

♦ Reinforced integral car frame and high-strength shaft structure, stable and safe for long-term use.

♦ Compliant with international standards, equipped with CE certification, ISO 9001 certification, meeting global residential elevator safety requirements.

Application Scenarios

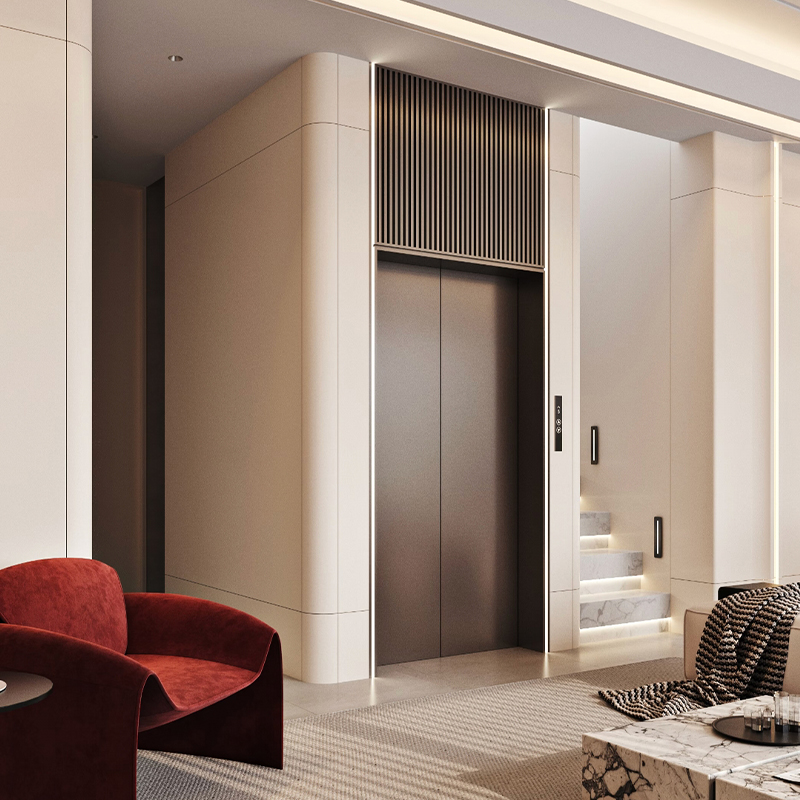

Perfect for luxury private villas, high-end residential buildings, courtyard houses, multi-storey family homes and elite customized residential projects.
